Twistable robot cables

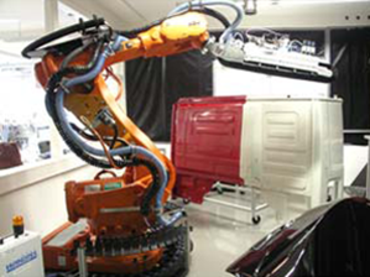

When customers ask about robotic cables, they often mean cables that are designed to be soft yet robust. Robots are not the only application in which these properties might be desirable. One thing these applications always have in common is that they are required to perform 3D movement in space. Torsional moment usually acts on these cables in the application. It is therefore better to speak of twistable cables. In this segment, there is a large product range called the CFROBOT families available from stock, which has been tested for torsion angles of up to +/- 360 degrees per metre. These cables are available in different assemblies, depending on the electrical requirements. Of course, shielded variants are also available, and the assemblies in such variants have a different design.


Shielding and filling material

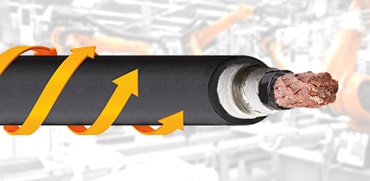

Robot cable design is vastly different from cable design for linear applications. Our cables normally have a very strong, stable internal structure able to withstand the special conditions in linear chain applications. But a torsion application has completely different arrangements. These cables have a very soft structure to compensate for the torsional movements. The difference is most noticeable in the shielding and the variety of fillers. We have a different shielding concept for robot cables. We use a shield wrap, not shield braiding, because a wrap allows the shielding to adapt to the torsional movements and to open and close. We have also installed many fillers in the cables. They function as shock absorbers, cushioning the torsional movement within the cable.
