Linear shaft housing drylin® R

The pillow blocks for drylin® R shaft guide are based on special wear-resistant high-performance plastics that serve as sliding elements. That way, a hygienic and lubrication-free linear shaft system is made possible. The shape of the pillow blocks is not only robust, but they also have identical dimensions to conventional recirculating ball bearing systems, to make a 1:1 replacement with the linear sliding system as easy as possible.

Pillow block products

Linear housing – closed

Linear shaft housing drylin® R

Anodised aluminium housing
Pre-mounted liner
With manual clamp (optional)
Optional with adjustable housing

Buy closed linear housing

Linear housing – open

Linear shaft housing drylin® R open design

Anodised aluminium housing
Pre-mounted liner
Optional with manual clamp
Also available with floating bearing

Buy open linear housing

Linear housing with flange

Linear housing drylin® R with flange

Anodised aluminium housing
With round or square flange
Also available with floating bearing function

Buy linear housing with flange

Why choose drylin® R shaft guides?

Robust

One to one replacement very easy

Thanks to dimensions identical with commercially available shaft guides with recirculating ball bearing systems

FDA compliance with stainless steel

Can also be deployed in the food industry and the pharmaceutical industry as hygiene is provided

High precision

Thanks to adjustable bearing clearance at the sliding elements

Tough and flexible

Thanks to absorbing forces from all directions

drylin® R is especially quiet

Quiet operation

Low vibration and quiet movement

Resistant to dirt

Thanks to lubrication-free sliding elements that push away the dirt on the running surfaces of the shafts

Pillow block with aluminium housing and linear plain bearing

Aluminium housing
Equipped with drylin R linear plain bearings
Tandem design with two linear plain bearings
Long or short design
Open or closed design
Securing of the bearing in the housing by DIN 472 circlips

Buy housing bearing with aluminium housing

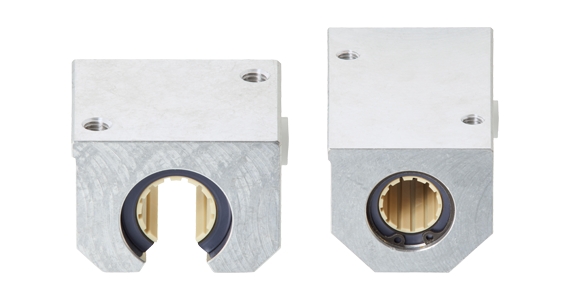

Pillow block drylin® R with aluminium housing

drylin® R quad block

For linear shafts that are supported and not supported

For linear shafts that are mounted parallel
Aluminium housing
Also self-aligning
With four drylin® R linear plain bearings
Optional with further liners
Mounting of the bearings in the housing with a circlip according to DIN 472

Quad block drylin® R for linear shafts

Application examples

banner

drylin® R in commercial vehicle technology

drylin® R transfers the steering movement from the front to the rear wheels.

banner

drylin® in the laboratory

The materials used here from the drylin® R product range easily withstand the extreme conditions.

banner

drylin® R on wooden shafts

A height-adjustable, tiltable wooden desk.

More application examples

Take a look at some more application examples.

To the articles

To the drylin® R overview
