Series 15 Classic

DISCONTINUED MODEL
For new designs, we recommend the improved e-chain® Series Zipper 15 new

Series 15 is available from stock in limited numbers. Product support and storage are limited as of 2012. For questions, please refer to your igus® contact person. Thank you for your understanding
to the "Zipper" e-chains® Series 15 new

Here you can configure your e-chain system® individually. All entries and changes are taking over to the part list which is situated at the end of the page.

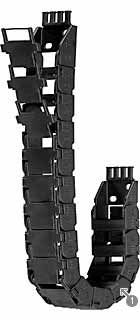

Series 15 - Chain, zip-open along the outer radius

1. Small pitch for quiet operation (33 links/m)

Available inner widths Bi: 15 to 50mm
Available bend radii R: 38 to 180mm
Pitch: 30.5mm/link = 33 links/m

When to use Series 15 "Zipper"

If quick opening is required
When many connection options are required (Quicksnap, Quickfix, etc.)
If interior separation is required

When not to use Series 15 "Zipper"

If the links do not need to be openable
Series 10 E2 mini
When there is torsion
Series E14 easy chain®
If the chain has to be openable along the inner radius
Series B15i E2 mini

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
K2 [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 20 mm (at 1 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end, B=fixed end
Pitch: 30.5 mm
Chain links per m: 33
Travel: S
Chain length = S /2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

Interior separation possible

2 mounting bracket variants

Quicksnap

Quickfix

4 widths, 7 bend radii

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Option 1: Separators

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:

Separators They are used if only a vertical interior separation is required.

Mounting brackets

Standard mounting brackets

Steel mounting brackets, one-part.

Steel mounting brackets, two-piece

unassembled	assembled

One-piece mounting bracket - secure fit

Corrosion-free

Can be fabricated

Mounting surfaces, fits inside/outside

Front mounting possible

Integrated strain relief available


:
Part No. :
A [mm]:
B [mm]:
Number of teeth :

unassembled	assembled

Steel, one-piece

One-piece mounting bracket - secure fit

Can be fabricated

Mounting surfaces, fits inside/outside

Integrated strain relief

corrosion

Part No. :

A [mm]:

unassembled	assembled

Steel, in two parts

1 set, compatible with all widths

Integrated strain relief

corrosion

Part No. :

A [mm]:

B [mm]:

Guide troughs

Cross section through one-piece guide trough with glide bar
(for dimensions C and D, refer to the delivery table)

For series 10, 15 and B15 one-piece steel guide troughs are available. They have a continuous glide bar for the gliding section of the trough. The guide troughs for the e-chains® with an outer width up to 60mm are available from stock. For wider e-chains® special solutions are possible at short notice.
For these trough sizes no installation sets are necessary as the guide troughs are made of a single U-profile. The solution for the trough joint is specific for every application.The standard length of the trough sections and glide bars is 2 m. The required length of guide trough is determined by the travel length.


Part No. :
C [mm]:
D [mm]:

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [m]	10
standing (max.) [m]	2
max. vertical, long travels [m]	50

Material of chain links	igumid G
Min. permissible temperature [°C]	-40
Max. permissible temperature [°C]	120
Gliding speed (max.) [m/s]	10
Max. gliding speed [m/s²]	50
Speed FLG max. [m/s]	20
Speed FLG max. [m/s²]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s²]	6
Flammability class of chain link	VDE 0304 IIC UL94 HB

Series 15 Classic

Series 15 - Chain, zip-open along the outer radius

Installation dimensions

Unsupported length

Long travels

Other installation types

Technical specifications

Interior separation

Product range

Mounting brackets

Guide troughs
