Series 640

Here you can configure your e-chain system® individually. All entries and changes are taking over to the part list which is situated at the end of the page.

Series 640 - chain, with crossbars every link

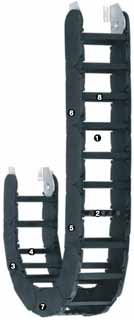

1. Optimal ratio of internal to external height
2. Modular interior separation
3. Stop-dog with brake for noise reduction
4. Wide plastic crossbars - cable friendly
5. Optimised gliding surfaces with side wear pads
6. Dirt-repellant outer contour
7. Alternative available with Reverse Bend Radius (RBR)!
8. Crossbars can be removed from both sides

Series 640 is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 7 m, gliding applications ≤ 450 m
Circular movement: Rotating applications possible, may require machining (machining rework is always required from rotation angles of 180°)

When to use Series 640

If a quiet type is required
For very high speed and/or acceleration
For long travel applications
For high fill weights

When not to use Series 640

When an easier and less expensive solution is ideal
Series 1640
If even higher strength is required
Series 600/601/R608
If a closed design is required
Series R608

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
H2 [mm]:
D2 :
K2 [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 100 mm (at 5 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end, B=fixed end
Pitch: 143mm per link
Chain links per m: 7
Travel: S
Chain length = S/2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

Quiet model

Steel mounting brackets

Modular interior separation

41 widths and 11 bend radii

e-chain® opener tools for easy opening and closing of E4 series igus® e-chains®

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

First separator

2. Shelves

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :
Width [mm]:

Pc. Add to part list

Online Services:


Part No. :
Width [mm]:

Pc. Add to part list

Online Services:


Part No. :
Width [mm]:

Pc. Add to part list

Online Services:


Part No. :
Width [mm]:

Pc. Add to part list

Online Services:


Part No. :
Width [mm]:

Pc. Add to part list

Online Services:


Part No. :
Width [mm]:

Pc. Add to part list

Online Services:

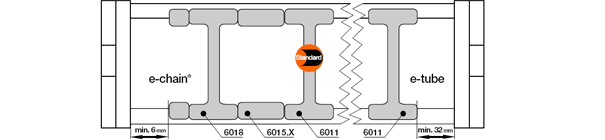

Option 1: Separators and spacers
igus® separators should be fitted every 2nd chain link as standard!

Standard separator 6401 for e-chains® offers secure stability under load with its wide base, even for thick cables and hoses

Separators (e.g. "side-mounted" application) can be fixed in position by spacers 405.XX for e-chains®. The available inner height is reduced by 2mm for each spacer. To prevent this, parts can also be installed from the outside onto the opening crossbar (not on long travels) XX = width of spacer (choice of 10, 15, 20, 30, 40 mm)

The locking separator for e-chains® 6408 is used in applications with very high humidity, e.g. composting plants. The side notch is used to ensure the correct alignment of the separators - if they are misaligned, the e-chain® can only be opened by damaging the separators.

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:

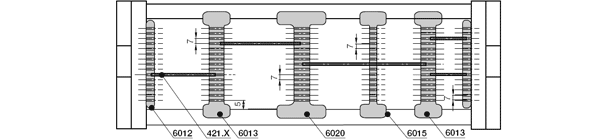

Option 2: Shelves When many cables with different diameters are used - e-chains® and e-tubes can be divided vertically and horizontally
